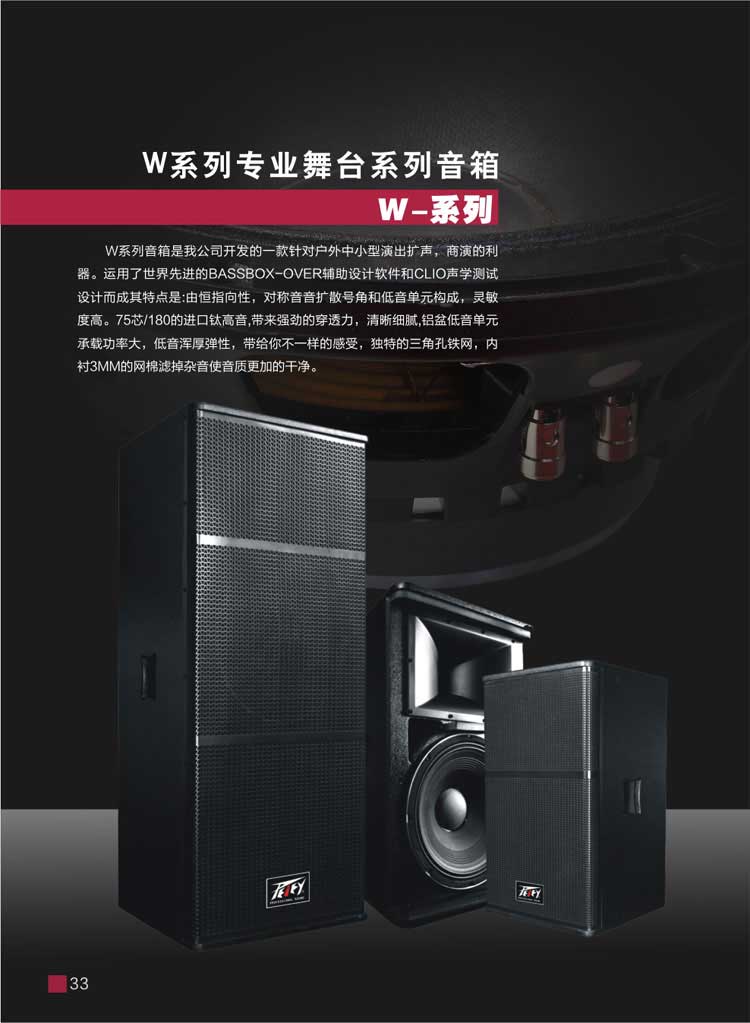

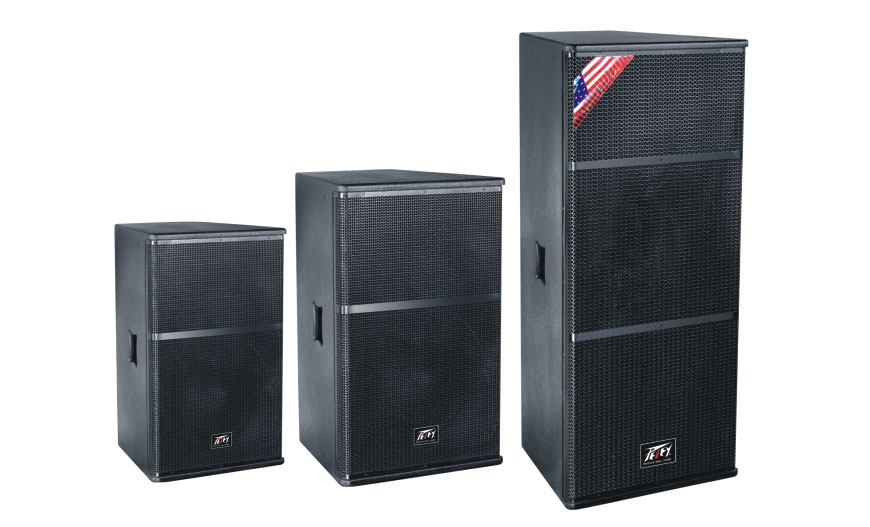

W係列音箱是我司開發的一款針對戶外中小型演出擴聲,商演的利器。運用了世界先進的BASSBOX-OVER輔助設計軟件和CLIO聲學測試設計而成。其特點是:由恒指向性,對稱聲音擴散號角和低音單元構成,靈敏度高。75芯,180的進口鈦高音,帶來強勁的穿透力,清晰細膩,鋁盆低音單元,承載功率大,低音渾厚彈性,帶給你不一樣的感受,獨特的三角孔鐵網,內襯3MM的網棉濾掉雜音使音質更加的幹淨。
W series speaker was developed by our company a for outdoor amplification, small and medium-sized performance ShangYan tool.The use of the world's advanced BASSBOX OVER aided design software and CLIO acoustic test design.Its characteristic is: the constant directivity, symmetric horn sound diffusion and bass units, high sensitivity.75 core, 180, the import of titanium soprano, strong penetrating power, clear and exquisite, aluminum bass unit, carrying big power, low elasticity, bring you different feeling, the unique triangular Kong Tie net, lined with 3 mm cotton filter out noise to make sound more clean.
技 術 參 數 TECHNICAL SPECIFICATIONS |
| |||
型 號 |
MODE |
W-12 |
W-15 |
W-25 |
功 率 |
(W)POWER RATING |
250-500 |
450-900 |
900-1800 |
阻 抗 |
(OHM)NOMINAL LMPEDANCE |
8 |
8 |
4 |
高 頻 驅 動 器 |
HF COMPONENT |
44芯126磁 |
75芯180磁 |
75芯180磁 |
低 頻 驅 動 器 |
LF COMPONENT |
12"65芯170磁*1 |
15"75芯170磁*1 |
15"75芯170磁*2 |
覆 蓋 角 度 |
NOMINAL COVERAGE |
100*45 |
100*45 |
100*45 |
靈 敏 度 |
(DB)SENSITIVITY(1W/ |
98 |
106 |
110 |
最 大 聲 壓 級 |
(DB)MAXXIMUM PEAK SPL |
101 |
118 |
128 |
頻 率 響 應 |
(HZ)FERQUENCY RESPONSE |
65-18000 |
45-20000 |
40-20000 |
產 品 尺 寸 |
(W*D*H)DIMENSIONS |
673*443*400 |
762*480*490 |
1205*554*520 |
