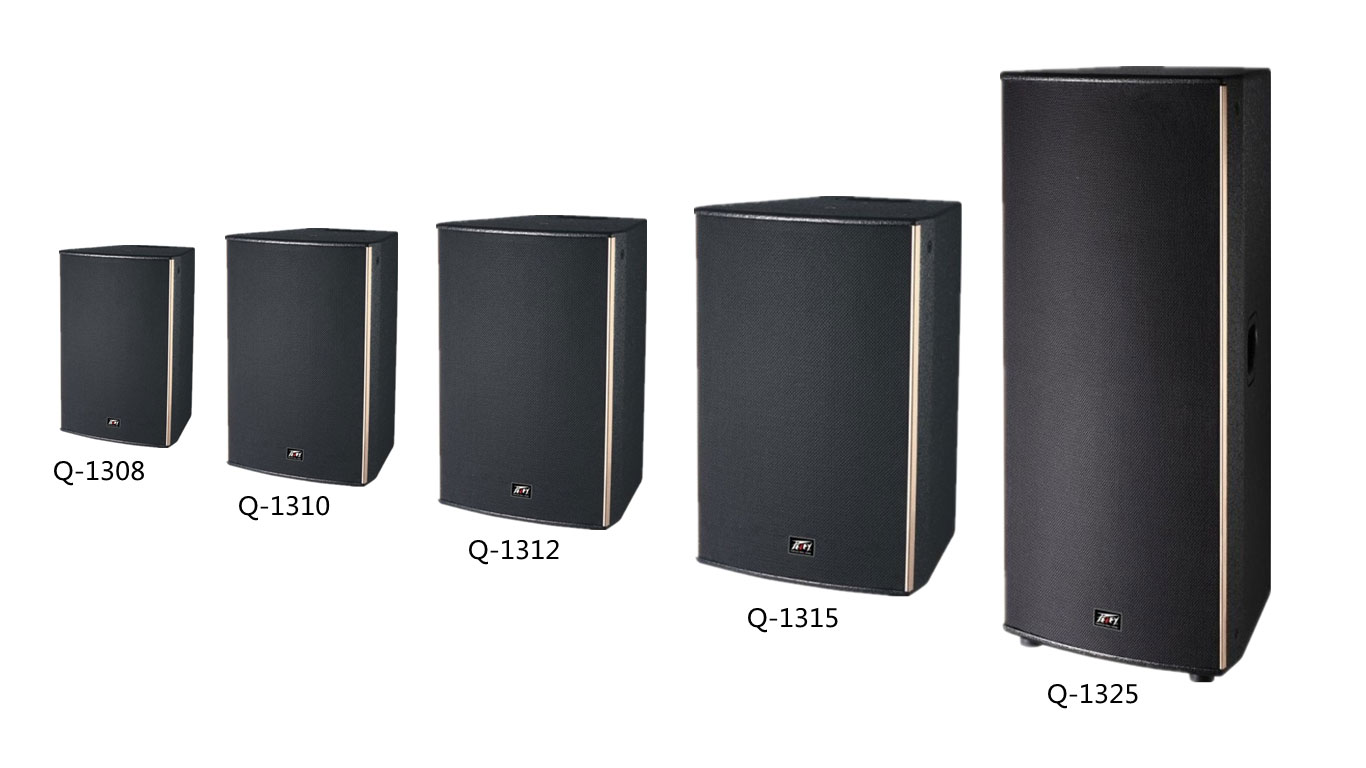

Q-13係列是針對目前對音色、品質要求教高的高檔會所、KTV、多功能廳、會議室等多用途使用環境設計開發的,結合目前世界音箱開發的先進技術(雙聚焦點聲源技術及想體抗駐波衍射處理技術)研發的結晶。起特點是體積小、係列全、音域?qū)拸V飽滿,高音細膩柔和、明亮通透。中頻飽滿圓潤、質感突出。低頻澎湃、厚實、強勁、富有彈性。
Q - 13 series is based on the current of tone color, high quality requirement to teach high-grade club, KTV, multi-function hall, conference room and other multi-purpose use environment design development, combining the advanced technology of the world speaker development (double focus sound technology and want to body standing wave diffraction processing technology) research and development of crystallization.Characterized by small volume, complete series, full range wide, high and soft and bright.Intermediate frequency full fruity, simple sense is prominent.Low frequency surging, thick, strong, rich elasticity.
技 術 參 數 TECHNICAL SPECIFICATIONS |
|
|||||
型 號 |
MODE |
Q-1308 |
Q-1310 |
Q-1312 |
Q-1315 |
Q-1325 |
功 率 |
(W)POWER RATING |
150 |
250 |
350 |
650 |
1000 |
阻 抗 |
(OHM)NOMINAL LMPEDANCE |
8 |
8 |
8 |
8 |
4 |
高 頻 驅 動 器 |
HF COMPONENT |
34芯*1 |
44芯*1 |
44芯*1 |
75芯*1 |
75芯*1 |
低 頻 驅 動 器 |
LF COMPONENT |
8"*1 |
10"*1 |
12"*1 |
15"*1 |
15"*2 |
覆 蓋 角 度 |
NOMINAL COVERAGE |
90*60 |
90*60 |
100*70 |
100*70 |
100*70 |
靈 敏 度 |
(DB)SENSITIVITY(1W/1M) |
103 |
107 |
113 |
118 |
126 |
最 大 聲 壓 級 |
(DB)MAXXIMUM PEAK SPL |
112 |
128 |
129 |
131 |
138 |
頻 率 響 應 |
(HZ)FERQUENCY RESPONSE |
55-19000 |
52-18000 |
48-19000 |
40-20000 |
40-20000 |
產 品 尺 寸 |
(W*D*H)DIMENSIONS |
412*255*272 |
500*330*323 |
590*380*370 |
712*438*370 |
1241*530*505 |
