產品展示
PRODUCTS

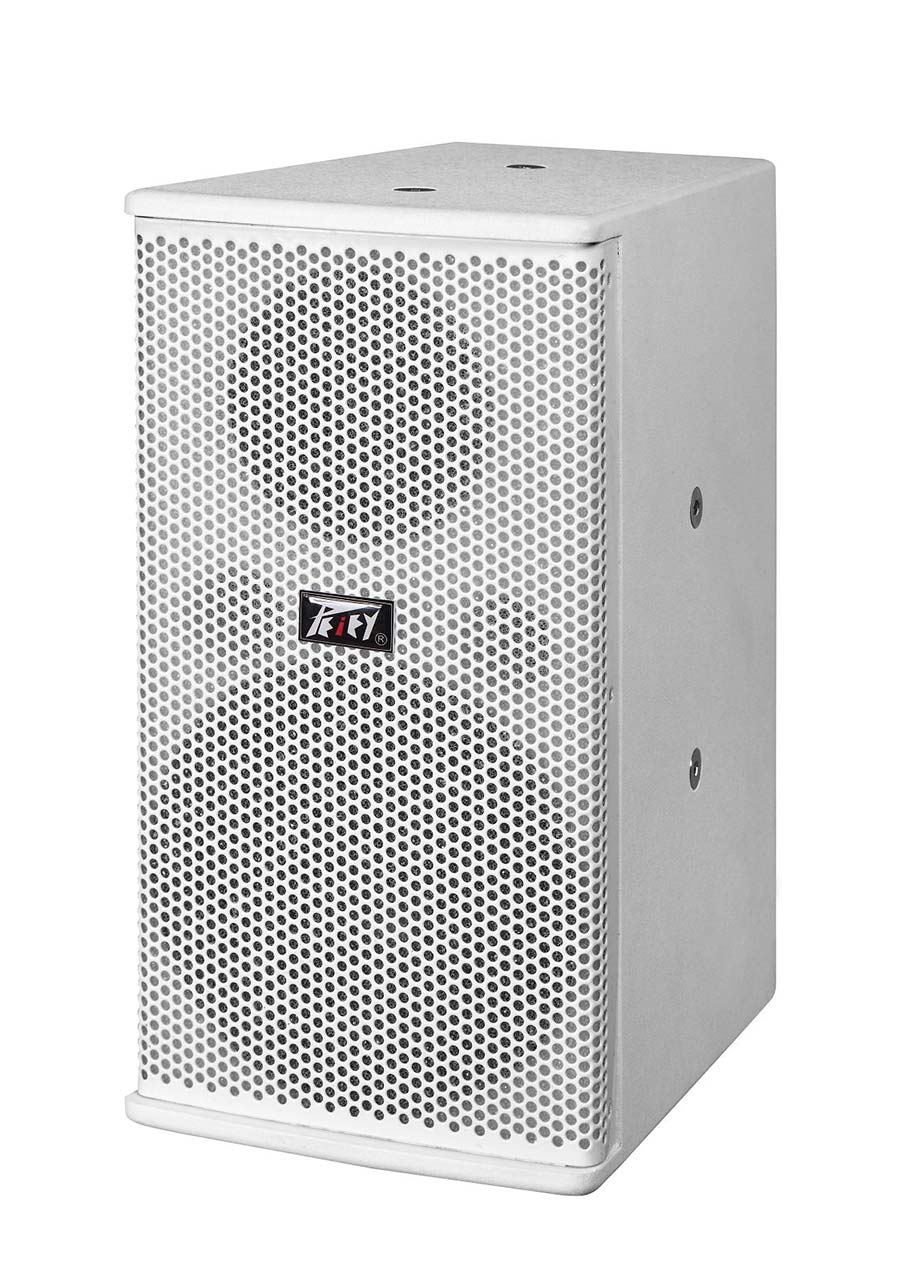

J-601

J係列會議音箱
采用2路2分頻梯形對稱設計,箱體采用高密度環保中纖板,音箱前板采用9mm木質夾板,更好的便於喇叭單元的固定及維修,鐵網采用1.0冷軋鋼板一次衝壓成型,保證了整體的一致性及完好度,箱體表麵采用環保細點油漆更便於室內使用,體現高檔,別致。多點吊掛設計更便於多種形式的設計安裝。
            低音單元采用6.5寸35芯120磁鐵,防水低音單元,低音澎湃,中頻豐滿有力,
            高音采用(208)1寸絲膜高音,70雙磁設計承載功率更大,中高頻細膩.清晰,圓潤.明亮,可滿足各種會議及背景擴聲使用.



J series conference speakers
      2 2 road divider trapezoidal symmetrical design, box use high-density fiberboard in environmental protection, sound box plate before using 9 mm woodiness plywood, better facilitate sperker fixed and servicing, iron net USES a 1.0 cold-rolled steel plate stamping molding, to ensure the overall consistency and the degree of sound, body surface using environmental protection clip figure painting easier for indoor use, high-grade, unique.Multipoint hanging design easier to various kinds of design and installation.
       Bass unit using a 6.5 -inch 35 core 120 magnets, waterproof bass unit, bass, intermediate frequency plump and strong,
High use (208) 1 inch high silk membrane, 70 pairs of magnetic design carrying power is bigger, the high-frequency exquisite. Clear, mellow. Bright, can satisfy all kinds of meetings and background amplification is used.










技 術 參 數    TECHNICAL SPECIFICATIONS

       號

 MODE

J-601

  統

SYSTEM COMPOSITION

兩路二單元會議音箱

揚

LOUDSPEAKER

低音:6.5*1 35120

高音:1寸絲膜高音 90



(OHM)NOMINAL LMPEDANCE

8



W)POWER RATING

80W

最大 承受 功率

(W)MAXIMUM INPEDANCE

150W

     範 圍

(HZ)FERQUENCY RESPONSE

55-18KHZ



(DB)SENSITIVITY(1W/1M)

93DB 1M/1W

        級

(DB)SOUND PRESSURE LEVEL(SPL)

96DB(峰值)



NOMINAL COVERAGE

110*60



CONNECTOR

NL4MP*2



HANG

Φ8螺絲*22

產

(W*D*H)DIMENSIONS

350*185*250MM
