VS係列音箱是我司針對戶外、室內演出、婚慶、大型場館設計的全係列線性專用演出音箱,可以滿足各種使用場合的要求。其最大的特點就是高音清晰明亮,中音飽滿圓潤,低音強勁有力,聲壓級高,人聲還原度高,恰恰滿足了對人聲高還原度,高聲壓級要求的環境場合使用。
采用先進的BASSBOXPRO\X-OVER電腦輔助設計的無源內置分頻電路,減少了因外置分頻帶給現場操作及係統鏈接麻煩獨特的12-16歐姆高阻抗線路設計有效的提高了音箱的阻尼係數,減少了因功率分配問題而需要的多臺功放的弊端。提高的功放的效率減少了投資的成本。保證了係統的穩定性。(一臺功放可以推動四隻音箱)。
全係列音箱揚聲器采用獨特的軸對稱設計。左右各一隻低音單元,中間為高音單元。其優點是左右聲像對稱,軸向輻射扇形柱麵波型增強。減少了因相位差而產生的聲壓影響。
高音采用獨特的dendrt創新分流波導管壓縮號角組成,高音采用後置擴張口安裝方式,保證高音的清晰自然和穿透力。提升了中頻的飽滿度。低音單元采用75芯190磁低音單元,低音強勁有力,富有彈性。合理的吊掛設計,掛點可承受8隻音箱的重量,無需卸下音箱即可調整音箱覆蓋的角度可多隻並列放置。組成大型線性演出陣列,合理的配置可滿足不同場所的安裝使用要求. 如同VT-218 VS18B超低頻箱組合在一起使用,會有更佳的音場效果。
VS series speakers are our company for outdoor and indoor concerts, wedding, large venues full series of professional performance box linear design, can meet the requirements of different using occasions.Its biggest characteristic is the high clear and bright, alto full fruity, bass strong, high sound pressure level, vocals, reductive degree is high, just meet the voices of high degree of reduction, environmental situations required by the non-linearity.
Advanced BASSBOXPRO \ X - OVER a computer aided design of passive built-in frequency division circuit, reduced because of the external points band system link to the site operation and trouble unique 12-16 ohms high impedance circuit design can improve the speaker of the damping coefficient, reducing the need for power allocation problem of many sets of power amplifier.To improve the efficiency of the power amplifier to reduce the cost of investment.Ensure the stability of the system.(a power amplifier can push four speakers).
Full range of sound box loudspeaker adopts the unique design of axisymmetric.A bass around each unit, the middle of the high unit.Its advantage is about audio-visual symmetry, the axial fan cylindrical wave radiation pattern.To reduce the effects due to phase difference of sound pressure.
High adopt unique dendrt innovation of shunt compression waveguide horn, high using rear expansion mouth installation, ensure the high clear and penetrating power.Improve the plumpness of intermediate frequency.Bass unit adopts 75 core 190 magnetic bass unit, bass strong, full of elasticity.Reasonable design of hanging, hanging point can bear the weight of eight speakers, without having to remove speakers can adjust the Angle of sound box cover can be placed only tied for more.Large linear array performance, reasonable configuration can meet the installation requirements of different places. Like VT - 218 VS18B ultra-low frequency box used together, there will be a better sound effect.

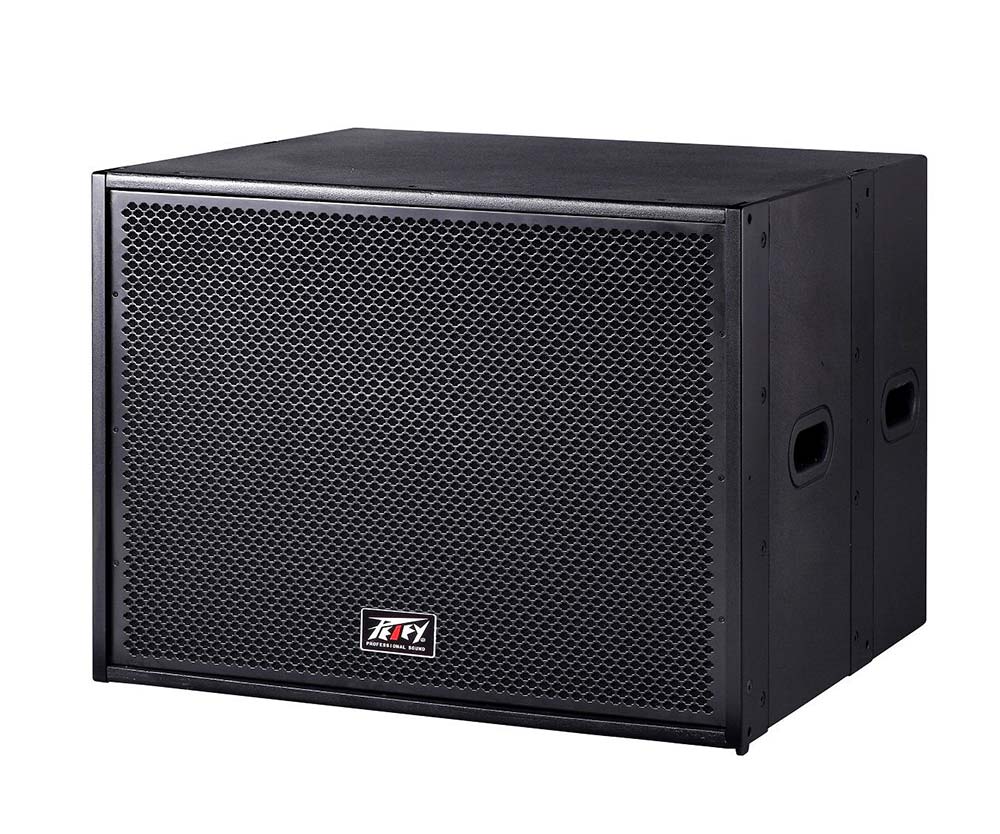

技 術 參 數 TECHNICAL SPECIFICATIONS |
||
型 號 |
MODE |
VS-18B |
系 統 組 成 |
SYSTEM COMPOSITION |
單18寸單元超低頻音箱 |
揚 聲 器 |
LOUDSPEAKER |
低音:18寸*1 100芯220磁 |
|
||
額 定 阻 抗 |
(OHM)NOMINAL LMPEDANCE |
8歐 |
額 定 功 率 |
(W)POWER RATING |
800W |
最大 承受 功率 |
(W)MAXIMUM INPEDANCE |
2400W |
頻 響 範 圍 |
(HZ)FERQUENCY RESPONSE |
32-2KHZ |
靈 敏 度 |
(DB)SENSITIVITY(1W/ |
100DB |
聲 壓 級 |
(DB)SOUND PRESSURE LEVEL(SPL) |
136DB(峰值) |
覆 蓋 角 度 |
NOMINAL COVERAGE |
|
連 接 插 孔 |
CONNECTOR |
NL4MP*2 |
吊 掛 |
HANG |
線性吊掛 |
產 品 尺 寸 |
(W*D*H)DIMENSIONS |
1296*572* |
