PRODUCTS

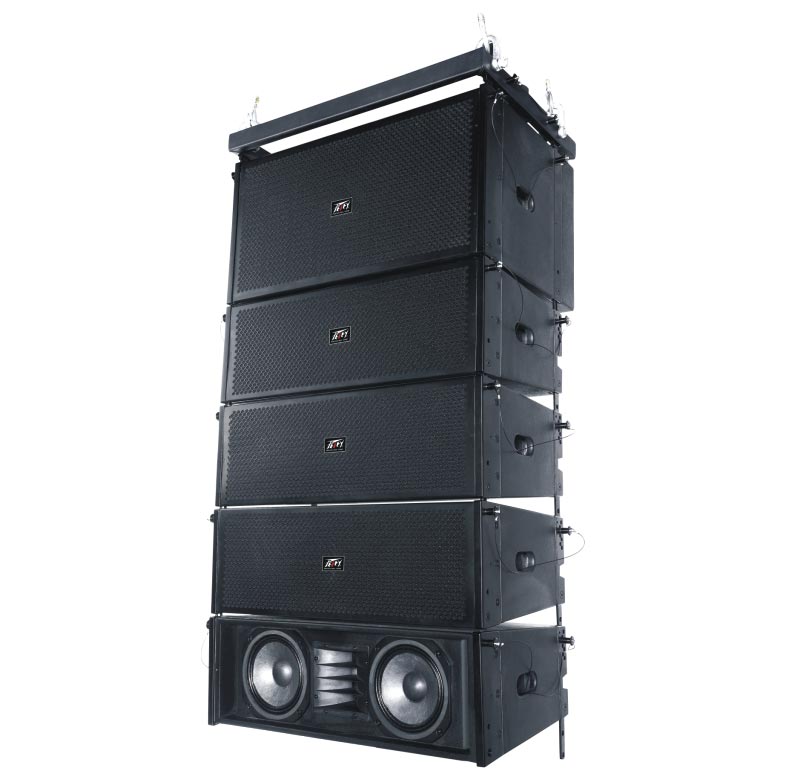

KF-8A.KF-22B

KF series of products designed for large performance and non-linearity in professional performance box, its biggest characteristic is the high clear and bright, alto plump, bass strong, high sound pressure level, noise reduction degree is high, it can meet the voices of high degree of reduction, environmental situations required by the non-linearity.

Advanced BASSBOXPRO \ X - OVER a computer aided design of passive built-in frequency division circuit, reduced because of the external points frequency and system link to the site operation and trouble unique 16 ohms high impedance circuit design, effectively improve the speaker of the damping coefficient, reducing the need for power allocation problem of many sets of the disadvantages of efficacy, improve the efficiency of the effect, reduce the cost of investment. Ensure the stability of the system. (a power amplifier can push four speakers).

Enclosure using high-density 18 mm birch plywood produced by seiko into the trough, guarantee the integrated structure of the box body solid, durable. Body appearance with Taiwan green environmental protection paint. Paint film surface hardness, flexibility were increased, at the same time also has the waterproof, wear-resisting, corrosion resistance, adhesion characteristics such as strong, prolong the service life of the speaker. Iron network using new cross the plum flower mesh 1.5 MM antirust processing steel plate stamping die and become, within 3 MM sponge, can play a role of dust-proof, also improve the speaker's overall appearance.

Full range of sound box loudspeaker adopts the unique design of axial symmetry. A bass around each unit, middle to high unit, its advantage is about audio-visual symmetry, the axial fan cylindrical wave radiation pattern. Reduces the sound of the impact due to the phase difference.

High adopt unique DENDRT innovation shunt titanium compression waveguide horn + 44 neodymium tent high, high using rear expansion mouth installation, ensure the high clear and penetrating power. Improve the plumpness of intermediate frequency. Bass unit adopts the BLACK paper imported from Spain basin, elastic wave elaborate. Unique M type selvage design ensures the bass strength, improve the degree of durable at the same time guarantee the bass transient nature, control and sensitivity. Double round copper clad aluminum wire space magnetic voice coil, Y30, guarantee in high-power bass state that never really perfect experience. Bass strong and elastic. Reasonable design of hanging, hanging point can bear the weight of eight speakers, without having to remove the speakers can adjust the Angle of sound box cover, can be placed only tied for more, large linear array performance, reasonable configuration can meet the installation requirements of different places. As A - 18, the M - 218 ultralow frequency speakers use together, will have A better sound effect.





技 術 參 數(shù)   TECHNICAL SPECIFICATIONS



 MODE

KF-8A

KF-22B



W)POWER RATING

350-500

600-800



(OHM)NOMINAL LMPEDANCE

12

4

高 頻 驅(qū) 動 器

HF COMPONENT

44*126



低 頻 驅(qū) 動 器

LF COMPONENT

8"*2

12"*1



NOMINAL COVERAGE

85*15





(DB)SENSITIVITY(1W/1M)

104

125

最 大 聲 壓 級

(DB)MAXXIMUM PEAK SPL

126

130



(HZ)FERQUENCY RESPONSE

86-19000

38-1000

產(chǎn)

(W*D*H)DIMENSIONS

775*260*398

775*400*480
