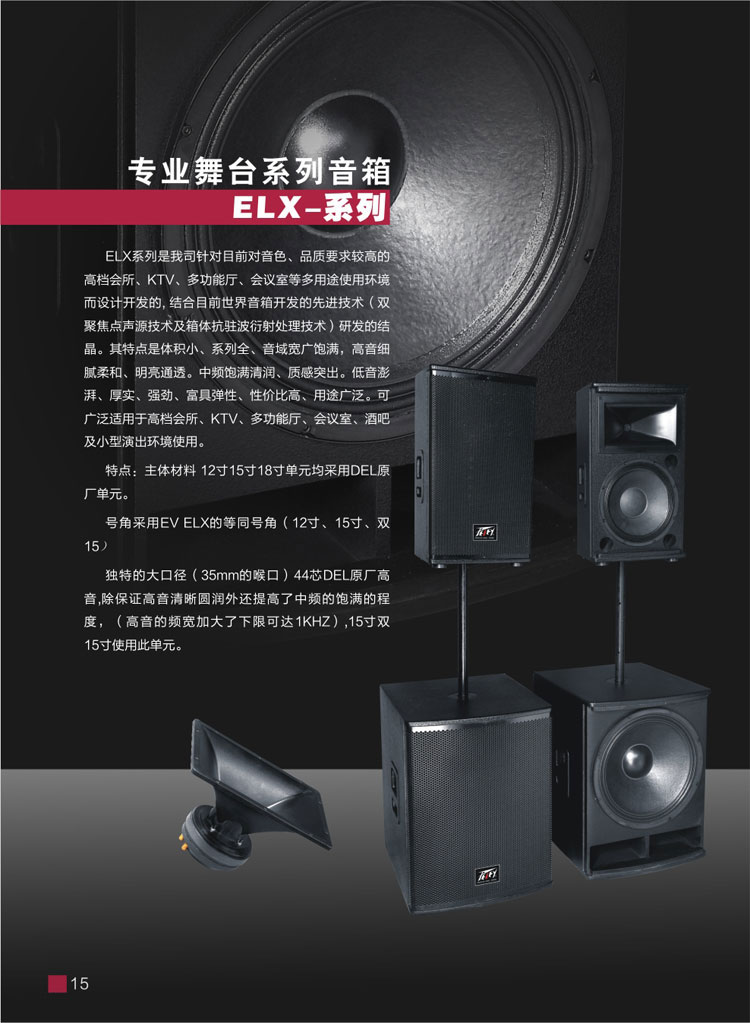

ELX series is our company according to the present of tone color, high quality requirements of the upscale club, KTV, multi-function hall, conference room and multipurpose use environment and design and development, combining the advanced technology of the world speaker development (double focus dual-source processing technology and the body resistance to gather wave diffraction technology) research and development of crystallization. Is characterized by small volume, complete series, full range is broad, meticulous soft voice, bright and transparent. Intermediate frequency full refrigerant, simple sense is prominent. Bass roaring and rushing, thick, strong, rich elasticity, cost-effective and widely used. Can be widely used in high-grade, multi-function hall, conference room, club, KTV bars and small environment use.
Characteristic: the main body material 12 inch 15 inch 18 inch unit adopts DEL original unit.
Horn using EV ELX horn equivalent (12 ", 15 ", double 15).
Unique large-diameter core throat (35 mm) 44 DEL original high, in addition to guarantee the high clear round also improve the degree of intermediate frequency of full (high bandwidth increases the lower limit of up to 1 KHZ).
技 術 參 數 TECHNICAL SPECIFICATIONS | ||
型 號 |
MODE |

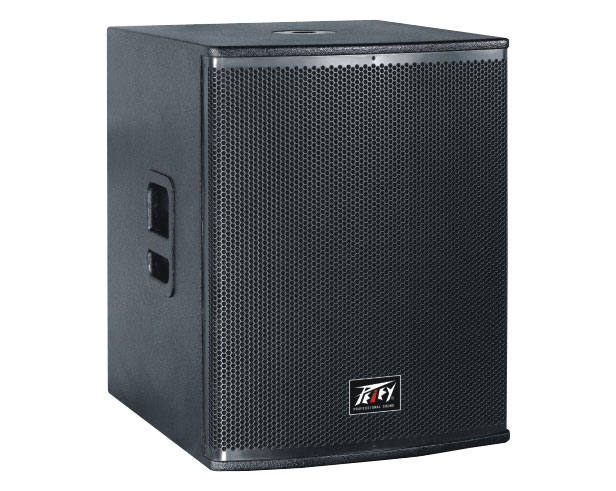

ELX-18 |
功 率 |
(W)POWER RATING |
650 |
阻 抗 |
(OHM)NOMINAL LMPEDANCE |
8 |
高 頻 驅 動 器 |
HF COMPONENT |
|
低 頻 驅 動 器 |
LF COMPONENT |
18"*1 |
覆 蓋 角 度 |
NOMINAL COVERAGE |
|
靈 敏 度 |
(DB)SENSITIVITY(1W/1M) |
96 |
最 大 聲 壓 級 |
(DB)MAXXIMUM PEAK SPL |
134 |
頻 率 響 應 |
(HZ)FERQUENCY RESPONSE |
55-20000 |
產 品 尺 寸 |
(W*D*H)DIMENSIONS |
660*505*575 |
