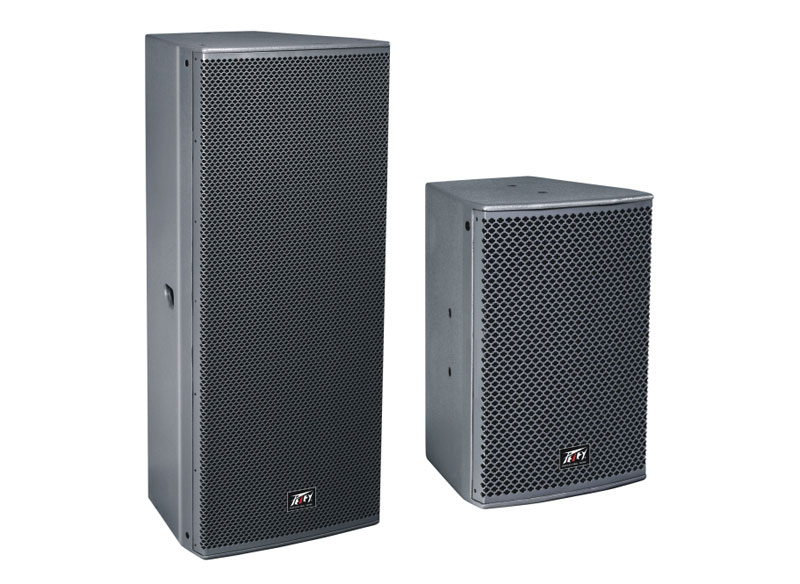

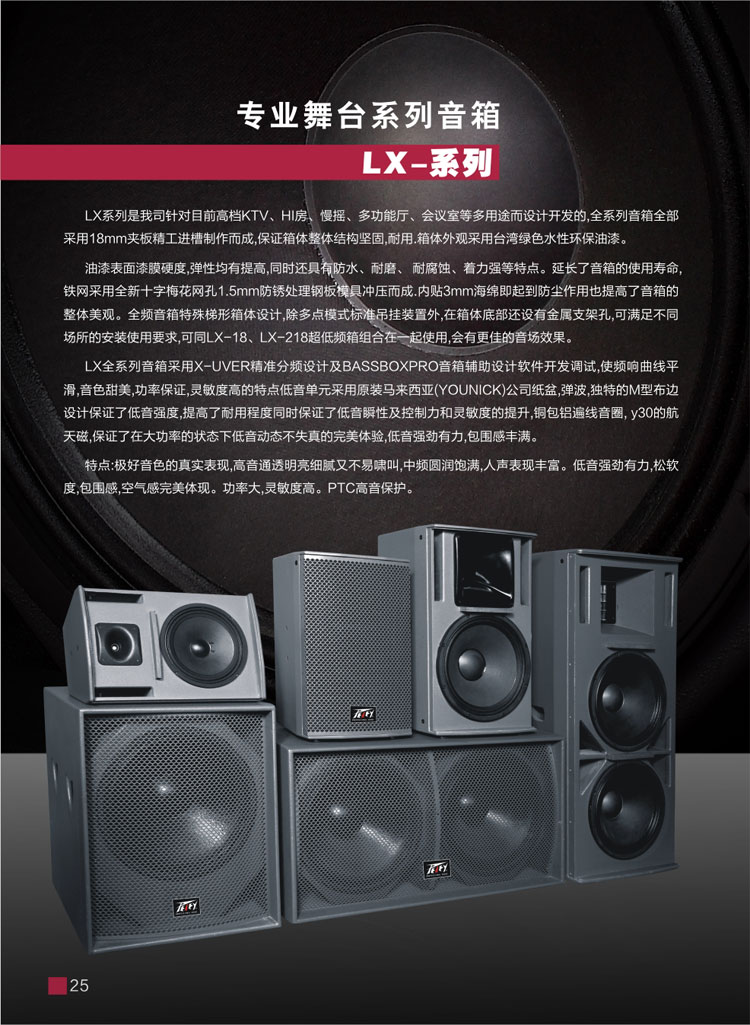

LX series is our company based on the current high-grade room, KTV, HI slow wave, multi-function hall, conference room and so on multi-purpose development and design, a full range speakers are all made of 18 mm plywood produced by seiko into the trough, guarantee the integrated structure of the box body solid, durable. Adopt Taiwan green water-based environmental protection paint box body appearance.
Paint film surface hardness, flexibility were increased, at the same time also has the waterproof, wear-resisting, corrosion resistance, good adhesion, etc. Extend the service life of the sound box, iron mesh network using new cross of plum, 1.5 MM antirust processing steel plate stamping mould. Within 3 mm sponge the dustproof effect, also improve the speaker's overall appearance. All frequency speaker special trapezoidal cabinet design, in addition to the more standard hanging device model, also have metal stent hole at the bottom of the box body, can meet the installation requirement of different place, but with LX - 18, LX - 218 ultra-low frequency box used together, will have a better sound effect.
LX full range sound box used design X-ray UVER accurate frequency division and BASSBOXPRO speakers aided design software development and debugging, smooth frequency response curve, sound sweet, power guarantee, the characteristics of high sensitivity, low unit USES the original paper cone (YOUNICK) company in Malaysia, elastic wave, the unique design of M type cloth edge ensures low intensity, improve the degree of durable at the same time to ensure the bass instantaneous and control and the improvement of sensitivity, copper clad aluminum wire again voice coil, Y30 space magnetic, guarantee in high-power bass do not break really perfect experience, dynamic bass strong, surrounded by a sense of fullness.
Features: excellent sound real performance, high transparent bright subtle and difficult to screaming, intermediate frequency sections satiated, rich in vocal performance. Bass strong, soft, surrounded by feeling, air feeling perfect embodiment. Big power, high sensitivity. PTC high protection.
技 術 參 數(shù) TECHNICAL SPECIFICATIONS | |||
型 號 |
MODE |
LX-15 |
LX-215 |
功 率 |
(W)POWER RATING |
600-1100 |
900-1800 |
阻 抗 |
(OHM)NOMINAL LMPEDANCE |
8 |
4 |
高 頻 驅 動 器 |
HF COMPONENT |
1.7"*1 |
3"*1 |
低 頻 驅 動 器 |
LF COMPONENT |
15"*1 |
15"*2 |
覆 蓋 角 度 |
NOMINAL COVERAGE |
90*55 |
90*55 |
靈 敏 度 |
(DB)SENSITIVITY(1W/1M) |
109 |
126 |
最 大 聲 壓 級 |
(DB)MAXXIMUM PEAK SPL |
131 |
138 |
頻 率 響 應 |
(HZ)FERQUENCY RESPONSE |
43-20000 |
20-20000 |
產(chǎn) 品 尺 寸 |
(W*D*H)DIMENSIONS |
430*730*450 |
1240*530*505 |
