產品展示
PRODUCTS

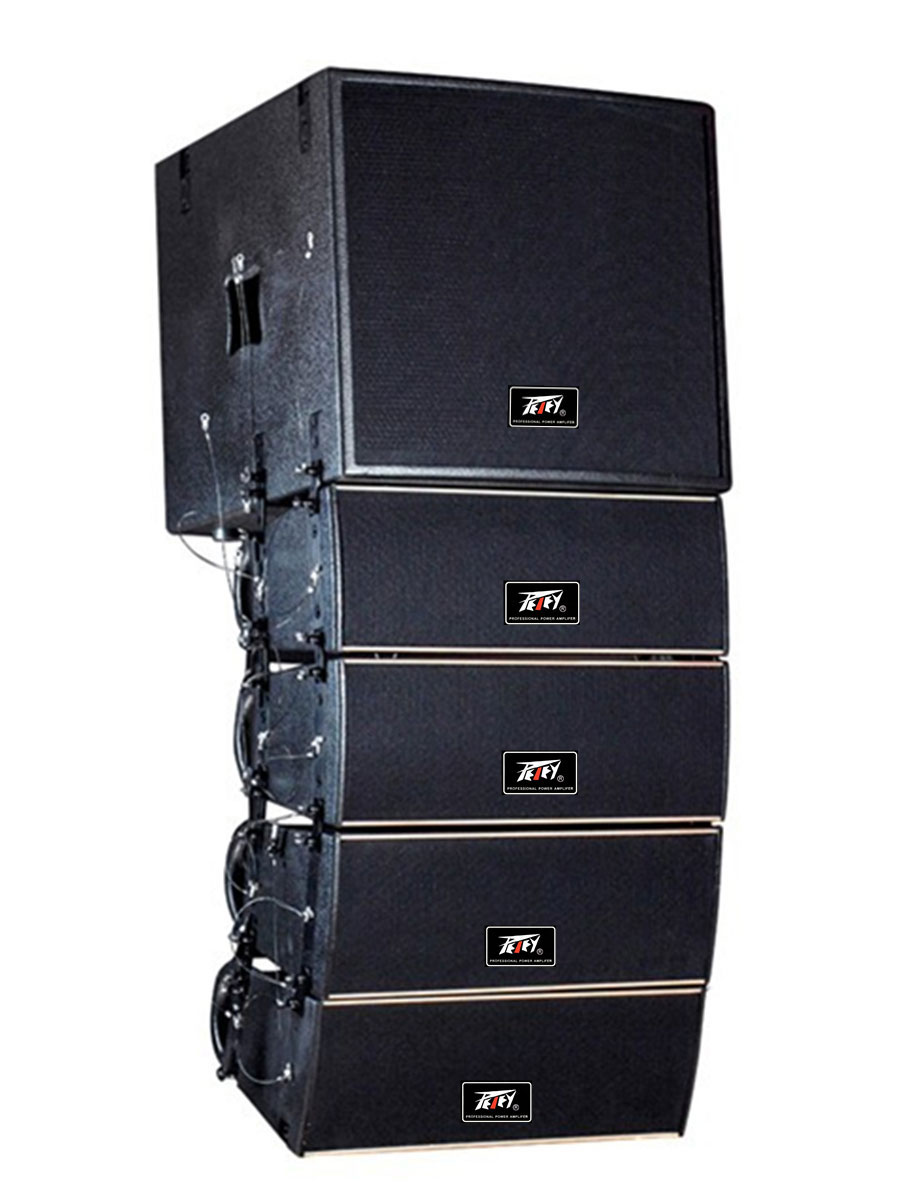

Q-1326、Q-15M

      Q-1326係列音箱是一款3單元2分頻的雙6.5寸線性音箱,針對廳堂、多功能會議廳、中小型禮堂較高聲壓級,音色要求而設計的專用(多功能)演出音箱,其最大的特點就是高音清晰明亮,中音飽滿圓潤,低音強勁有力,聲壓級高,人聲還原度高,恰恰滿足了對人聲高還原度,高聲壓級要求的環境場合使用。
      采用先進的BASSBOXPRO\X-OVER電腦輔助設計的無源內置分頻電路,減少了因外置分頻帶給現場操作及係統鏈接麻煩獨特的12歐姆高阻抗線路設計有效的提高了音箱的阻尼係數,減少了因功率分配問題而需要的多臺功放的弊端。提高的功放的效率減少了投資的成本。保證了係統的穩定性。(一臺功放可以推動四隻音箱)。
      Q-15M是Q-1326的係統配套的低音補償超低音箱。配合VT-218、DS-28使用可使係列的音域更寬低音更加飽滿強勁有力。


       Q-1326 series speakers is a 3 unit 2 points frequency double linear speakers, 6.5 -inch aimed at hall hall, multi-function hall, medium-sized auditorium is non-linearity, voice quality requirements and design professional (multi-function) performance box, its biggest characteristic is the high clear and bright, alto full fruity, bass strong, high sound pressure level, vocals, reductive degree is high, just meet the voices of high degree of reduction, environmental situations required by the non-linearity.
       Advanced BASSBOXPRO \ X - OVER a computer aided design of passive built-in frequency division circuit, reduced because of the external points band system link to the site operation and trouble unique 12 ohms high impedance circuit design can improve the speaker of the damping coefficient, reducing the need for power allocation problem of many sets of power amplifier.To improve the efficiency of the power amplifier to reduce the cost of investment.Ensure the stability of the system.(a power amplifier can push four speakers).
       Q-15M is Q-1326 system matching the bass compensation ultra-low speakers.Cooperate with VT - 218, DS - 28 use can make the wider the range of a series of more full of powerful bass.






技 術 參 數    TECHNICAL SPECIFICATIONS



 MODE

Q-1326

Q-15M

  統

SYSTEM COMPOSITION

兩路三單元二分頻線性音箱

15寸單元超低頻音箱

揚

LOUDSPEAKER

低音:6.5*2 38120

低音:15*1 75190

高音:44*1鈦膜高音 120





(OHM)NOMINAL LMPEDANCE

12

8



W)POWER RATING

250W

450W

最大 承受 功率

(W)MAXIMUM INPEDANCE

600W

900W

     範 圍

(HZ)FERQUENCY RESPONSE

60-20KHZ

35-2KHZ



(DB)SENSITIVITY(1W/1M)

108DB 1M/1W

104DB 1M/1W



(DB)SOUND PRESSURE LEVEL(SPL)

129DB(峰值)

125DB(峰值)



NOMINAL COVERAGE

110*40

110*40



CONNECTOR

NL4MP*2

NL4MP*2



HANG

線性吊掛

線性吊掛

產

(W*D*H)DIMENSIONS

560*205*310MM

560*560*510MM
